used on many Saeco and Philips machines

EP1220/00 - EP2020/10 - EP2030/10- EP2220/10 - EP2021/40 - EP22221/40- EP2224/40 -EP3221/40- EP2230/10 - EP2231/40 - EP3241/50 - EP3246/70 - EP3243/50 - EP3243/70 - EP3249/70 - EP2235/40 - EP2035/40

Operating principle:

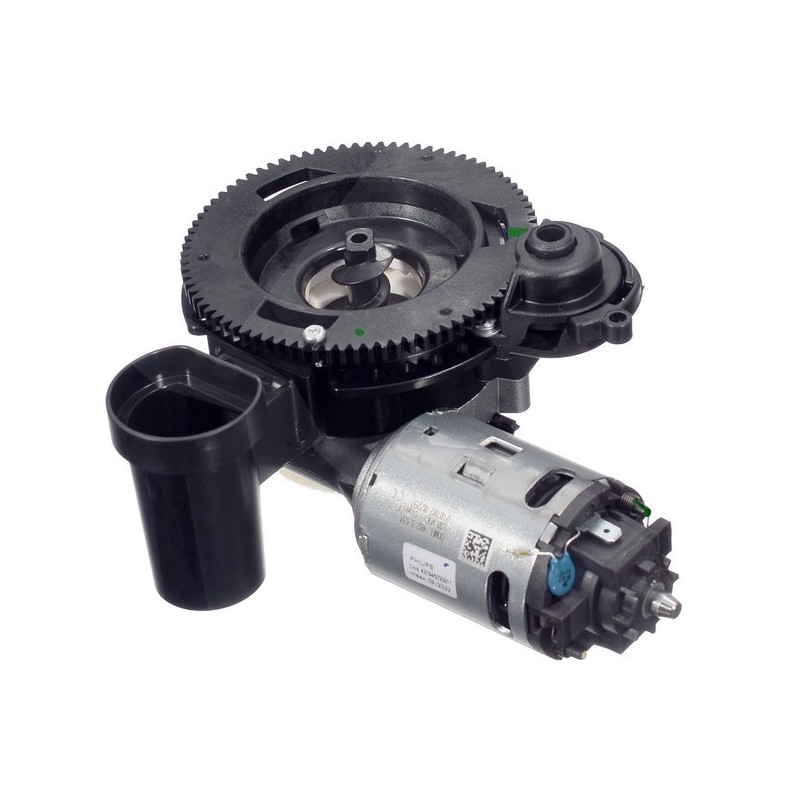

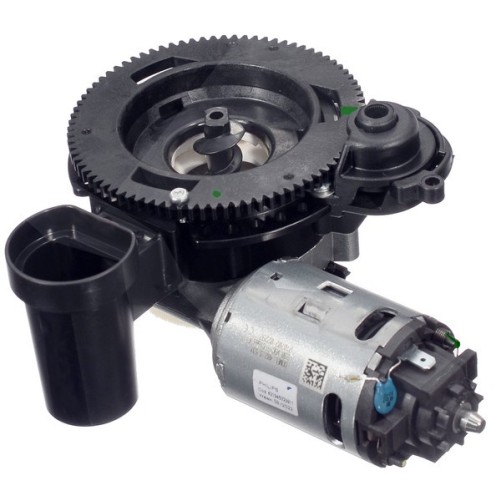

The coffee mill is driven by a DC motor (1) using an endless helical wheel (2). The endless screw leads to a gear that turns the lower wheel (4). On the same axis, a wheel (3) has two magnets (6) which induce two pulses on a sensor, which in turn transmits them to the electronic system.

Attention

This mill operates under continuous voltage : Danger, manipulate out of tension by a qualified person with serious references in electricity/ electronic.

Gen.Mot.Cof.grinder V2 OMN 230V
